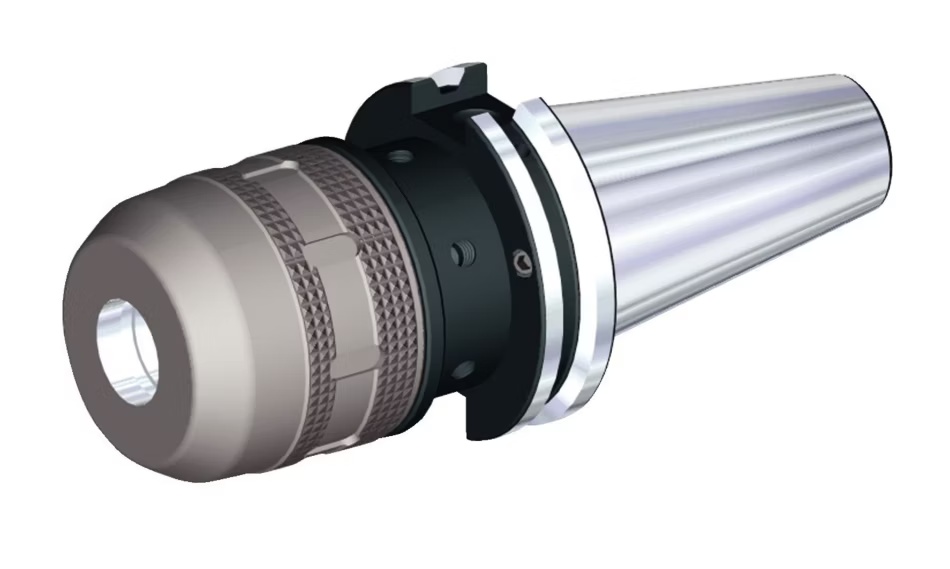

Picture of Widia/Kennametal 3100404 CAT50 Milling Chuck Widia/Kennametal 0.7500 19.05 - 3/4 6.4961 Gauge Length

Widia/Kennametal 3100404 CAT50 Milling Chuck Widia/Kennametal 0.7500 19.05 - 3/4 6.4961 Gauge Length

Part Number: WID3100404 ISO: CV50HPMC075650 ANSI:CV50HPMC075650

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439113
Vendor: Sussex Tool and Supply
$984.49
Widia/Kennametal 3/4 Milling Chuck - Cv50 Formb Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 10.5000 266.70MM
Coolant Thru Thru Coolant
Tool Dia 1.4200 36.06MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.7500
Output Type Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Milling Chuck
CNC Conection CAT50
CNC Out Put CYLINDRICAL0.7500
Gauge Length 6.4961
Max RPM 20000
Tool Over Hang 5.1146
Nose Dia/Nut Dia 2.0866
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
