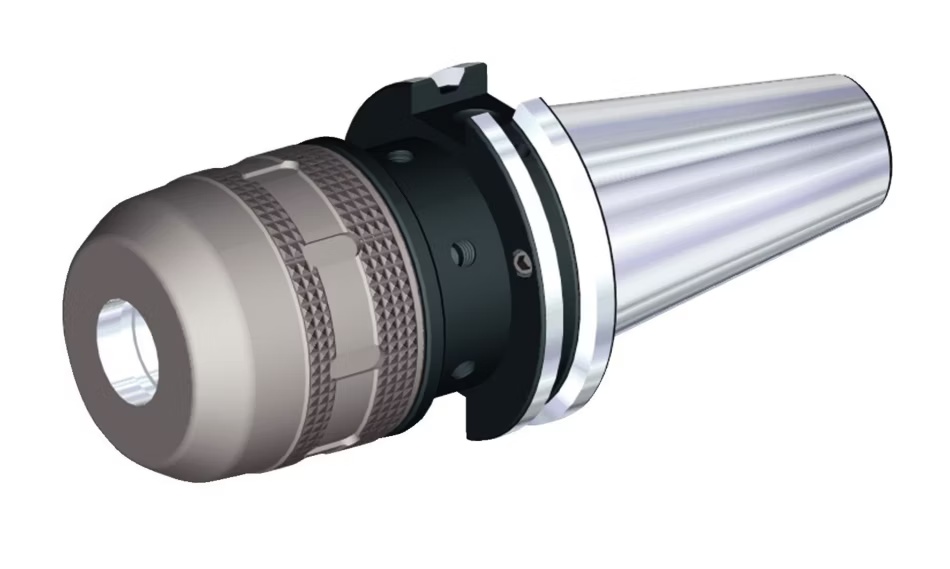

Picture of Widia/Kennametal 3100361 CAT40 Milling Chuck Widia/Kennametal 1.2500 31.75mm - 1-1/4 5.9055 Gauge Length

Widia/Kennametal 3100361 CAT40 Milling Chuck Widia/Kennametal 1.2500 31.75mm - 1-1/4 5.9055 Gauge Length

Part Number: WID3100361 ISO: CV40HPMC125591 ANSI:CV40HPMC125591

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439110
Vendor: Sussex Tool and Supply
$767.02
Widia/Kennametal 1 1/4 Milling Chuck - Cv40 For Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 8.5920 218.24MM
Coolant Thru Thru Coolant
Tool Dia 1.4200 36.06MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical1.2500
Output Type Cylindrical
Output 1.2500 31.75MM - 1-1/4
CNC Type Tool Milling Chuck
CNC Conection CAT40
CNC Out Put CYLINDRICAL1.2500
Gauge Length 5.9055
Max RPM 20000
Tool Over Hang 5.9055
Nose Dia/Nut Dia 2.7559
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
