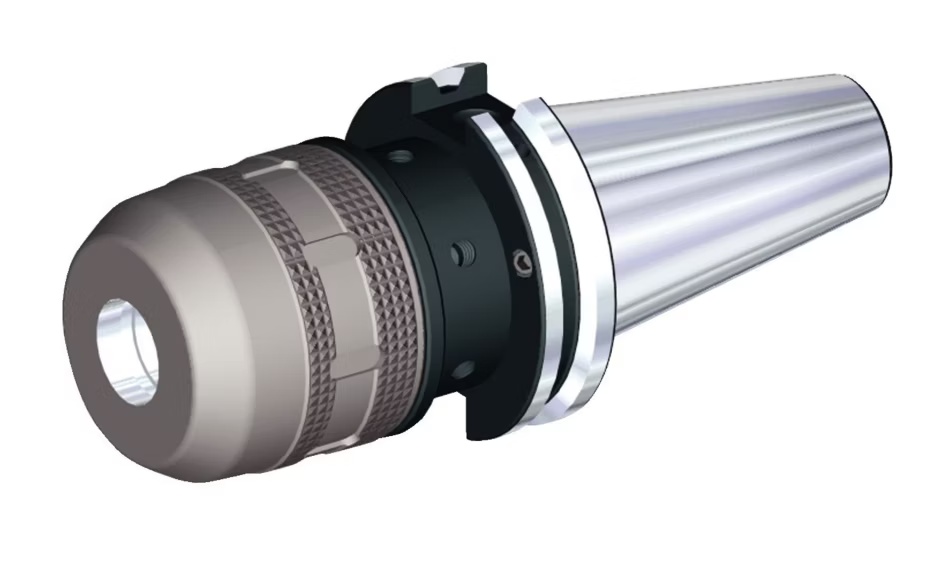

Picture of Widia/Kennametal 3100360 CAT40 Milling Chuck Widia/Kennametal 1.0000 25.40mm 5.9055 Gauge Length

Widia/Kennametal 3100360 CAT40 Milling Chuck Widia/Kennametal 1.0000 25.40mm 5.9055 Gauge Length

Part Number: WID3100360 ISO: CV40HPMC100591 ANSI:CV40HPMC100591

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439109
Vendor: Sussex Tool and Supply
$767.02
Widia/Kennametal 1 Milling Chuck - Cv40 Formb - Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 8.5920 218.24MM
Coolant Thru Thru Coolant
Tool Dia 1.4200 36.06MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical1.0000
Output Type Cylindrical
Output 1.0000 25.40MM
CNC Type Tool Milling Chuck
CNC Conection CAT40
CNC Out Put CYLINDRICAL1.0000
Gauge Length 5.9055
Max RPM 20000
Tool Over Hang 5.1559
Nose Dia/Nut Dia 2.4016
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
