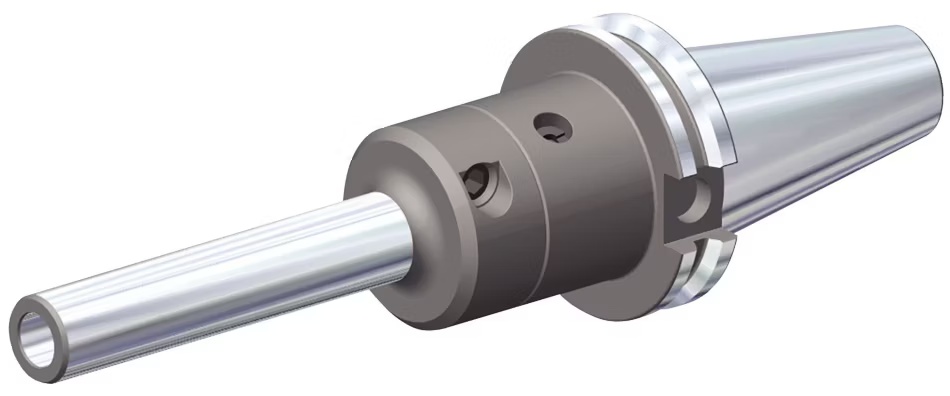

Picture of Widia/Kennametal 3019259 CAT40 Hydraulic Chuck .6250 15.88mm - 5/8 6.6930 Gauge Length

Widia/Kennametal 3019259 CAT40 Hydraulic Chuck .6250 15.88mm - 5/8 6.6930 Gauge Length

Part Number: WID3019259 ISO: CV40HCSL062669 ANSI:CV40HCSL062669

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439095
Vendor: Sussex Tool and Supply
$930.38
Widia/Kennametal Cv40 Hydraulic Chuck Slimline Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 9.3800 238.25MM
Coolant Thru Thru Coolant
Tool Dia 1.4180 36.01MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.6250
Output Type Cylindrical
Output 0.6250 15.88MM - 5/8
CNC Type Tool Hydraulic Chuck
CNC Conection CAT40
CNC Out Put CYLINDRICAL0.6250
Gauge Length 6.6930
Max RPM 15000
Tool Over Hang 3.7400
Balanced To 000 RPM at G6.3, 15
