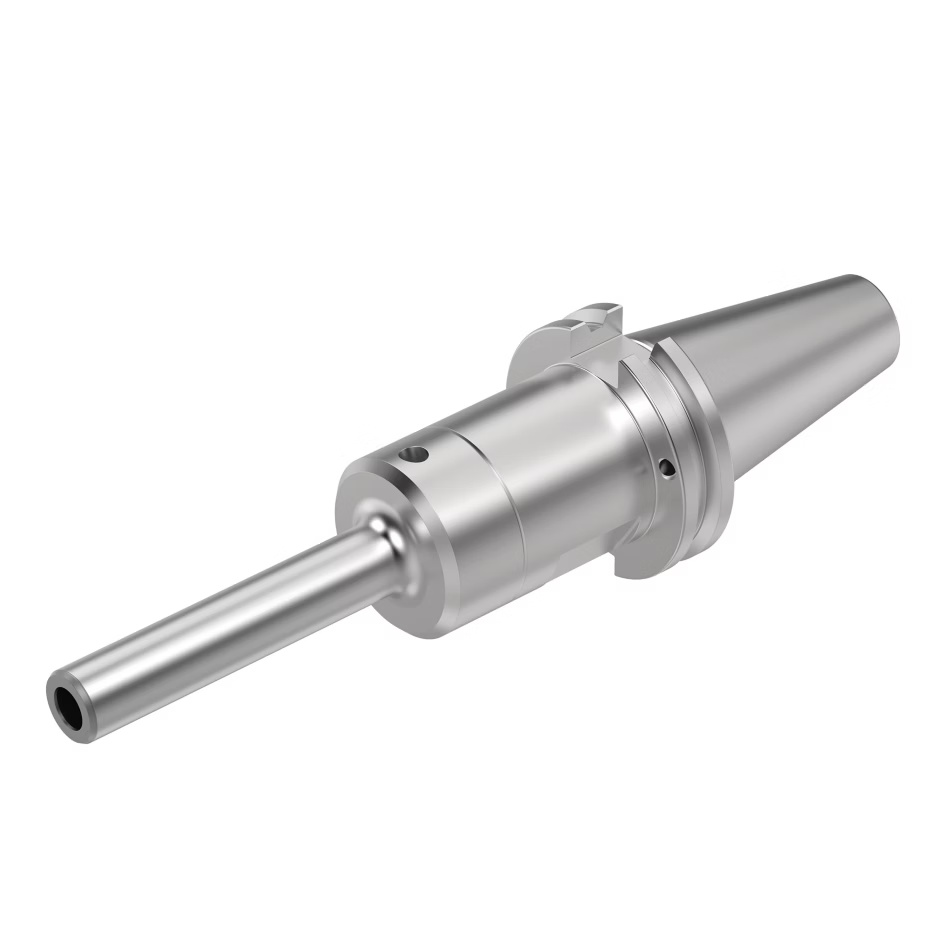

Picture of Widia/Kennametal 3019258 CAT40 Hydraulic Chuck .3750 9.53mm - 3/8 6.6900 Gauge Length

Widia/Kennametal 3019258 CAT40 Hydraulic Chuck .3750 9.53mm - 3/8 6.6900 Gauge Length

Part Number: WID3019258 ISO: CV40HCSLT038669 ANSI:CV40HCSLT038669

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439094
Vendor: Sussex Tool and Supply
$930.38
Widia/Kennametal Cv40 Hydraulic Chuck Slimline Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 9.3800 238.25MM
Coolant Thru Thru Coolant
Tool Dia 1.4180 36.01MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.3750
Output Type Cylindrical
Output 0.3750 9.53MM - 3/8
CNC Type Tool Hydraulic Chuck
CNC Conection CAT40
CNC Out Put CYLINDRICAL0.3750
Gauge Length 6.6900
Max RPM 15000
Tool Over Hang 3.3460
Balanced To 000 RPM at G6.3, 15
