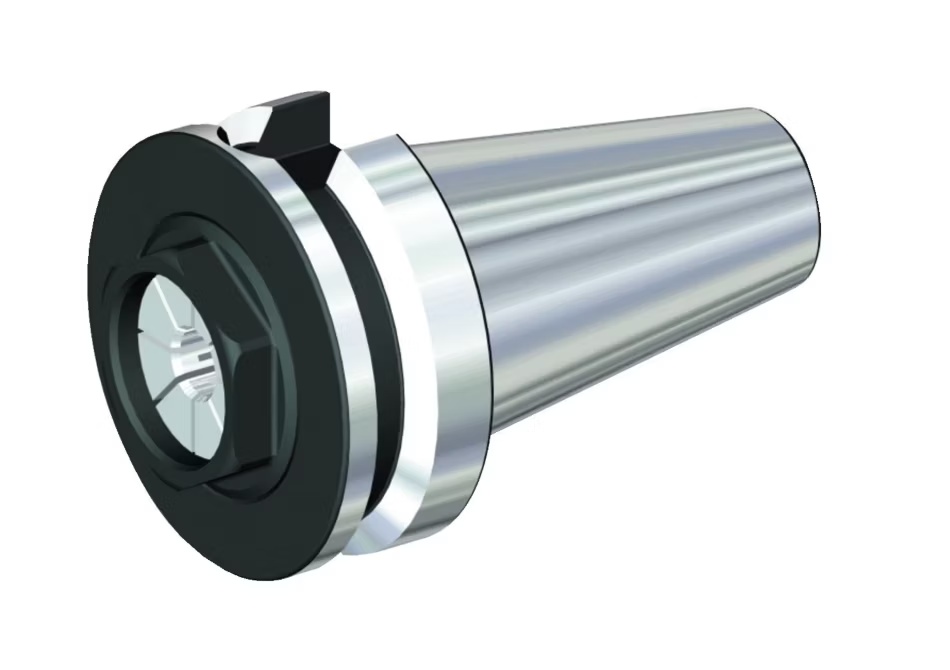

Widia/Kennametal 2978767 BT50 Collet Chuck ER40 1.8110 Gauge Length

Part Number: WID2978767 ISO: BT50SER40046M ANSI:BT50SER40046M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1438302
Vendor: Sussex Tool and Supply
$205.20

Description

Widia/Kennametal ER40 Short Collet Chuck - BT50 Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dimensions & Sizing
Overall Length 5.8189 147.80MM
Tool Dia 1.3390 34.01MM
Gauge Length 1.8110
Tool Over Hang 1.0610
Nose Dia/Nut Dia 1.8110
Performance & Capacity
Output 40
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection BT50
