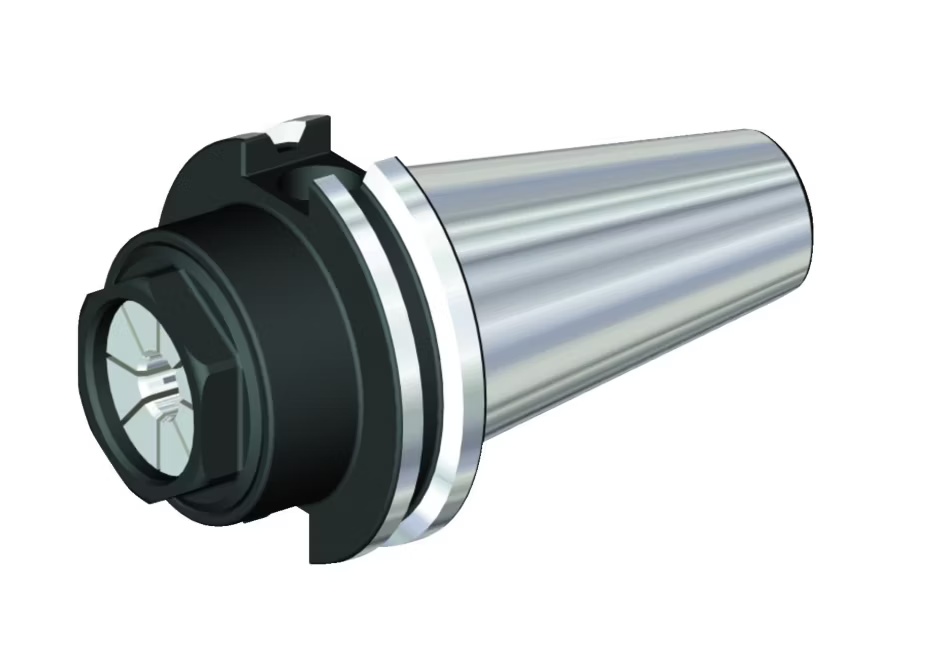

Picture of Widia/Kennametal 2978764 CAT50 Collet Chuck ER40 1.6929 Gauge Length

Widia/Kennametal 2978764 CAT50 Collet Chuck ER40 1.6929 Gauge Length

Part Number: WID2978764 ISO: CV50SER40169 ANSI:CV50SER40169
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1438921
Vendor: Sussex Tool and Supply
$205.20

Description

Widia/Kennametal ER40 Short Collet Chuck - Cv50 Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dimensions & Sizing
Overall Length 5.6929 144.60MM
Tool Dia 1.4010 35.58MM
Gauge Length 1.6929
Tool Over Hang 0.9430
Nose Dia/Nut Dia 1.8110
Performance & Capacity
Output 40
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT50
