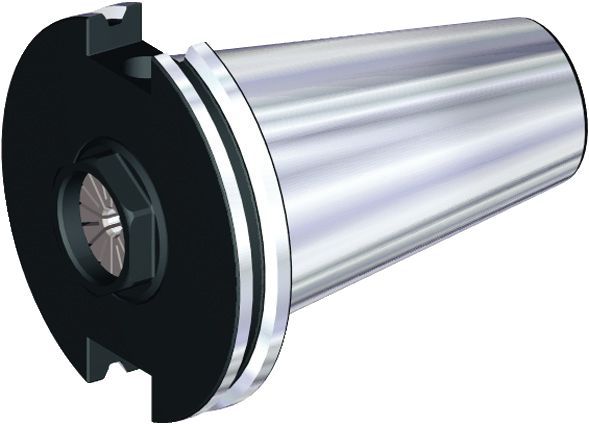

Picture of Widia/Kennametal 2978763 CAT50 Collet Chuck ER40 1.0630 Gauge Length

Widia/Kennametal 2978763 CAT50 Collet Chuck ER40 1.0630 Gauge Length

Part Number: WID2978763 ISO: CV50ZSER40106 ANSI:CV50ZSER40106
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1438920
Vendor: Sussex Tool and Supply
$205.20

Description

Widia/Kennametal ER40 Short Collet Chuck - Cv50 Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dimensions & Sizing
Overall Length 5.0630 128.60MM
Tool Dia 1.4010 35.58MM
Gauge Length 1.0630
Tool Over Hang 0.3130
Nose Dia/Nut Dia 1.8110
Performance & Capacity
Output 40
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT50
