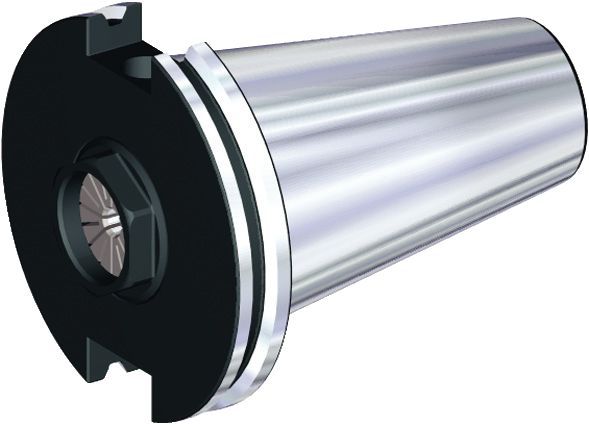

Picture of Widia/Kennametal 2978741 CAT50 Collet Chuck ER32 1.0630 Gauge Length

Widia/Kennametal 2978741 CAT50 Collet Chuck ER32 1.0630 Gauge Length

Part Number: WID2978741 ISO: CV50ZSER32106 ANSI:CV50ZSER32106

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438918
Vendor: Sussex Tool and Supply
$226.03
Widia/Kennametal ER32 Short Collet Chuck - Cv50 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 5.0630 128.60MM
Coolant Thru Thru Coolant
Tool Dia 1.4010 35.58MM
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER32
Output Type ER
Output 32
CNC Type Tool Collet Chuck
CNC Conection CAT50
CNC Out Put ER32
Gauge Length 1.0630
Max RPM 20000
Tool Over Hang 0.3130
Nose Dia/Nut Dia 1.4124
Balanced To 20, 000 RPM at G6.3
