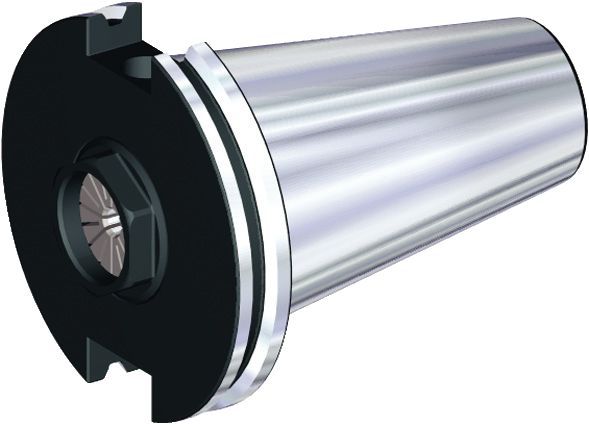

Picture of Widia/Kennametal 2978739 CAT40 Collet Chuck ER32 1.0630 Gauge Length

Widia/Kennametal 2978739 CAT40 Collet Chuck ER32 1.0630 Gauge Length

Part Number: WID2978739 ISO: CV40ZSER32106 ANSI:CV40ZSER32106
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1438916
Vendor: Sussex Tool and Supply
$127.77

Description

Widia/Kennametal ER32 Short Collet Chuck - Cv40 Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Tool Dia 1.4010 35.58MM
Gauge Length 1.0630
Tool Over Hang 0.3130
Nose Dia/Nut Dia 1.4100
Performance & Capacity
Output 32
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT40
