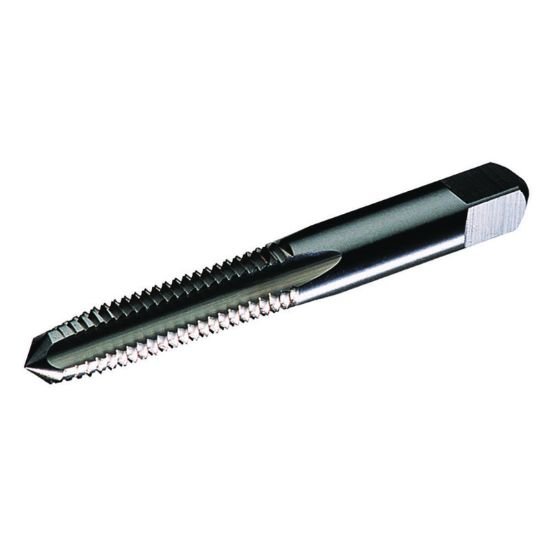

Picture of Widia/Kennametal 2748988 No.0-80.00Tpi Hand Tap Plug 3.0P-5.5P HSS Uncoated

Widia/Kennametal 2748988 No.0-80.00Tpi Hand Tap Plug 3.0P-5.5P HSS Uncoated

Part Number: WID15103

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1001854
Vendor: Sussex Tool and Supply
$503.87

WIDIA KENNAMETAL hand tap plug with 0.80 TPI flute right hand thread. Thread type NF/UNF/UNEF. Tool type tap, machine side connection tap collet TAP0.110x0.140. Tool material steel.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NF/UNF/UNEF
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.110x0.140

Grades & Coatings

  • Alternate Description: WIDIA 2748988 No.0x80.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated H1/GH1 NF/UNF/UNEF

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Hand tap plug cuts threads in metal. It works with right flute direction. Threads include NF/UNF/UNEF types.

Composition

Steel tool material. Uncoated surface. HSS steel type.

Typical Uses

Used in tapping 3.0P to 5.5P threads. Fits tap collet TAP0.110x0.140. Operates in machine toolpost.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSS
Tool Material Steel
Machine Side (Toolpost) TAP0.110x0.140
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 1.6250 41.28MM
Shank Or Pilot Diameter 0.1410 3.58MM
Coolant Thru Non Coolant
Flutes Or Inserts 2
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 80.00TPI
Thread Type NF/UNF/UNEF
Flute Direction Right
Thread Size No.0
Tap Style Hand Tap
Tap Type Plug
Thread Limit H1/GH1
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0469 1.19MM - 0.0500 1.27MM
Tap Square 0.1100
Tap Chamfer 3.0P-5.5P
