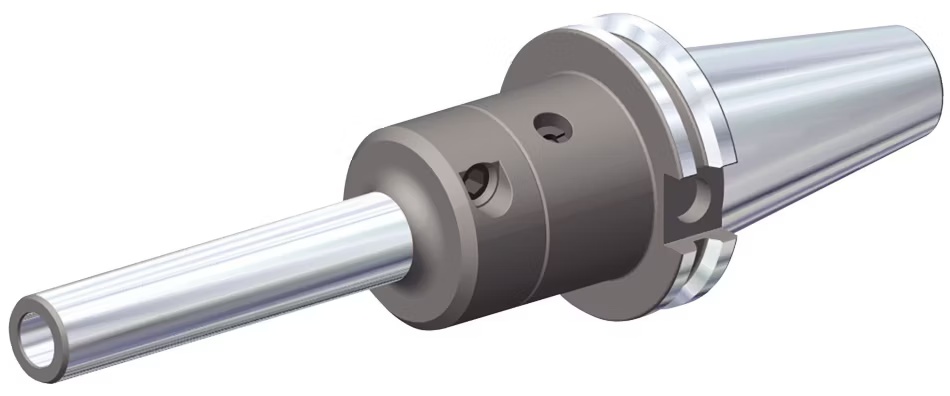

Picture of Widia/Kennametal 2508158 CAT50 Hydraulic Chuck .7500 19.05 - 3/4 7.8740 Gauge Length

Widia/Kennametal 2508158 CAT50 Hydraulic Chuck .7500 19.05 - 3/4 7.8740 Gauge Length

Part Number: WID2508158 ISO: CV50HCSL075787 ANSI:CV50HCSL075787

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439079
Vendor: Sussex Tool and Supply
$1,033.76
Widia/Kennametal Cv50 Hydraulic Chuck Slimline Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 11.8740 301.60MM
Coolant Thru Thru Coolant
Tool Dia 1.4170 35.99MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.7500
Output Type Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Hydraulic Chuck
CNC Conection CAT50
CNC Out Put CYLINDRICAL0.7500
Gauge Length 7.8740
Max RPM 15000
Tool Over Hang 3.7400
Balanced To 000 RPM at G6.3, 15
