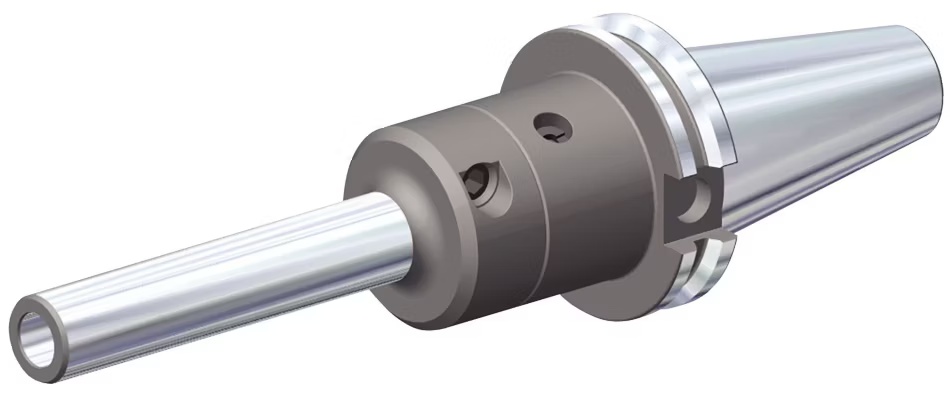

Picture of Widia/Kennametal 2508153 CAT40 Hydraulic Chuck .5000 12.70mm - 1/2 6.6930 Gauge Length

Widia/Kennametal 2508153 CAT40 Hydraulic Chuck .5000 12.70mm - 1/2 6.6930 Gauge Length

Part Number: WID2508153 ISO: CV40HCSL050669 ANSI:CV40HCSL050669

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439074
Vendor: Sussex Tool and Supply
$911.83
Widia/Kennametal Cv40 Hydraulic Chuck Slimline Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 40
Overall Length 9.3800 238.25MM
Coolant Thru Thru Coolant
Tool Dia 1.4160 35.96MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical0.5000
Output Type Cylindrical
Output 0.5000 12.70MM - 1/2
CNC Type Tool Hydraulic Chuck
CNC Conection CAT40
CNC Out Put CYLINDRICAL0.5000
Gauge Length 6.6930
Max RPM 15000
Tool Over Hang 3.7400
Balanced To 000 RPM at G6.3, 15
