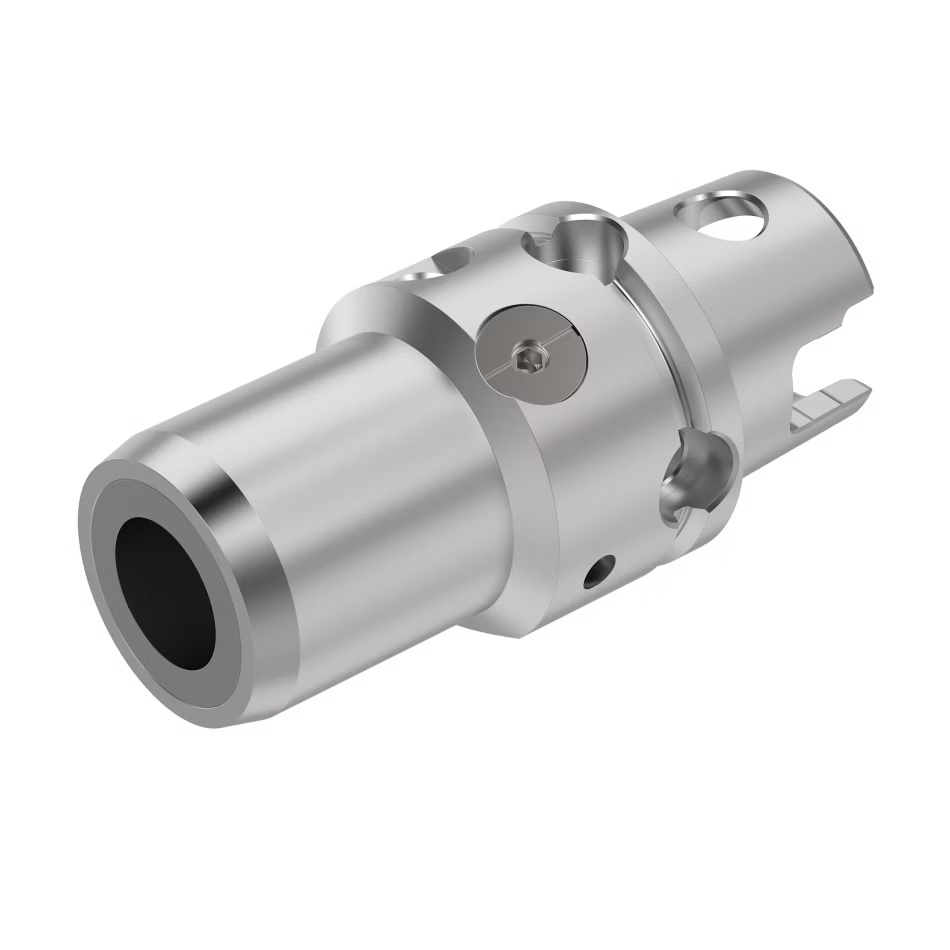

Picture of Widia/Kennametal 2388647 KM63 Hydraulic Chuck .7500 19.05 - 3/4 3.3750 Gauge Length

Widia/Kennametal 2388647 KM63 Hydraulic Chuck .7500 19.05 - 3/4 3.3750 Gauge Length

Part Number: WID2388647 ISO: KM63TSHC075338 ANSI:KM63TSHC075338

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440549
Vendor: Sussex Tool and Supply
$1,289.57
Widia/Kennametal KM63Ts Hydro Chuck Hp Ø3/4 X 3 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type KM
Mach Side Connection Size 63
Overall Length 4.9500 125.73MM
Coolant Thru Thru Coolant
Tool Dia 1.5640 39.72MM
Type Of Tool KM Tooling
Insert/Tool TOOL
Part Side Cylindrical0.7500
Output Type Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Hydraulic Chuck
CNC Conection KM63
CNC Out Put CYLINDRICAL0.7500
Gauge Length 3.3750
Max RPM 15000
Tool Over Hang 1.8900
Balanced To 000 RPM at G6.3, 15
