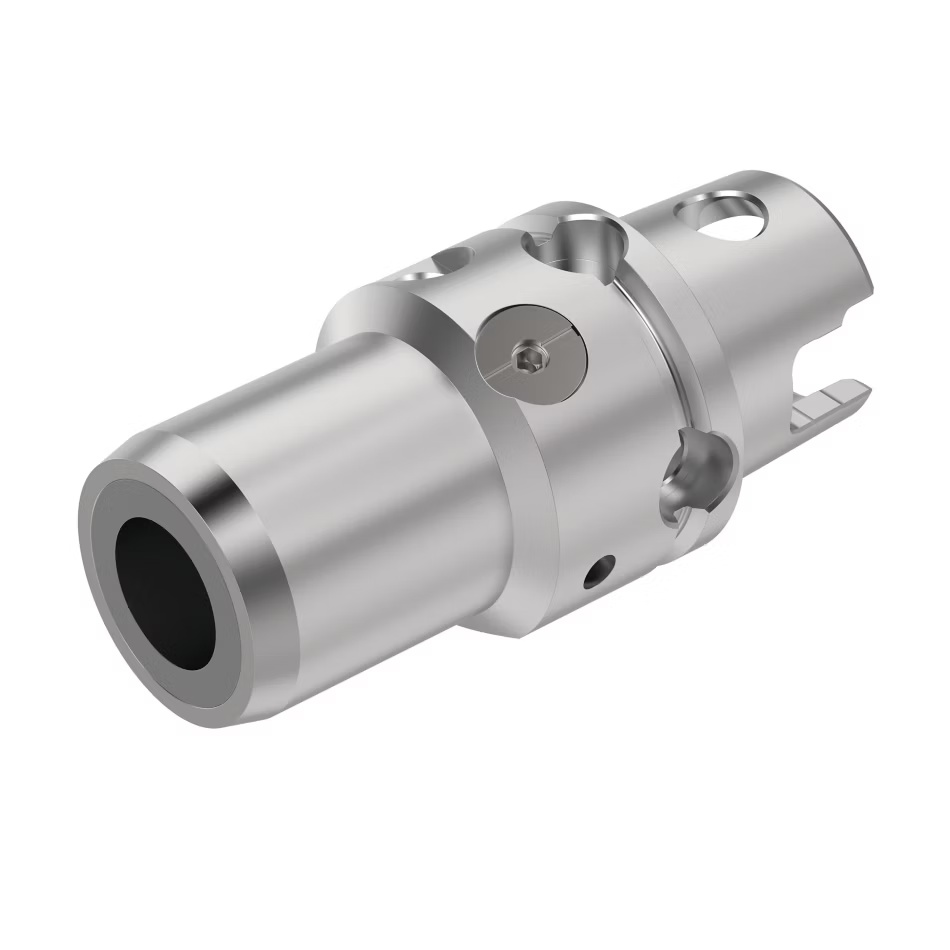

Picture of Widia/Kennametal 2388646 KM63 Hydraulic Chuck .6250 15.88mm - 5/8 3.2500 Gauge Length

Widia/Kennametal 2388646 KM63 Hydraulic Chuck .6250 15.88mm - 5/8 3.2500 Gauge Length

Part Number: WID2388646 ISO: KM63TSHC062325 ANSI:KM63TSHC062325

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440548
Vendor: Sussex Tool and Supply
$1,270.89
Widia/Kennametal KM63Ts Hydro Chuck Hp Ø5/8 X 3 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type KM
Mach Side Connection Size 63
Overall Length 4.8230 122.50MM
Coolant Thru Thru Coolant
Tool Dia 1.5640 39.72MM
Type Of Tool KM Tooling
Insert/Tool TOOL
Part Side Cylindrical0.6250
Output Type Cylindrical
Output 0.6250 15.88MM - 5/8
CNC Type Tool Hydraulic Chuck
CNC Conection KM63
CNC Out Put CYLINDRICAL0.6250
Gauge Length 3.2500
Max RPM 15000
Tool Over Hang 1.8700
Balanced To 000 RPM at G6.3, 15
