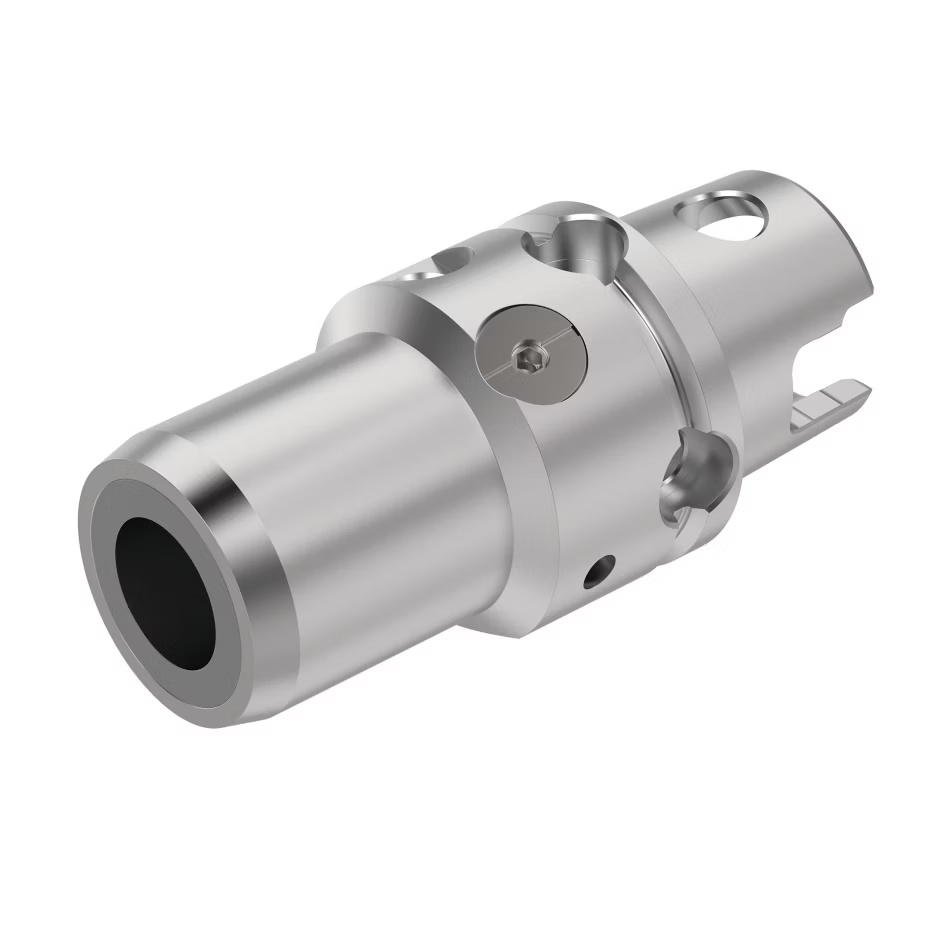

Picture of Widia/Kennametal 2388644 KM63 Hydraulic Chuck .3750 9.53mm - 3/8 3.0000 Gauge Length

Widia/Kennametal 2388644 KM63 Hydraulic Chuck .3750 9.53mm - 3/8 3.0000 Gauge Length

Part Number: WID2388644 ISO: KM63TSHC038300 ANSI:KM63TSHC038300

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1440546
Vendor: Sussex Tool and Supply
$1,270.89
Widia/Kennametal KM63Ts Hydro Chuck Hp Ø3/8 X 3 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type KM
Mach Side Connection Size 63
Overall Length 4.5700 116.08MM
Coolant Thru Thru Coolant
Tool Dia 1.5640 39.72MM
Type Of Tool KM Tooling
Insert/Tool TOOL
Part Side Cylindrical0.3750
Output Type Cylindrical
Output 0.3750 9.53MM - 3/8
CNC Type Tool Hydraulic Chuck
CNC Conection KM63
CNC Out Put CYLINDRICAL0.3750
Gauge Length 3.0000
Max RPM 15000
Tool Over Hang 1.4170
Balanced To 000 RPM at G6.3, 15
