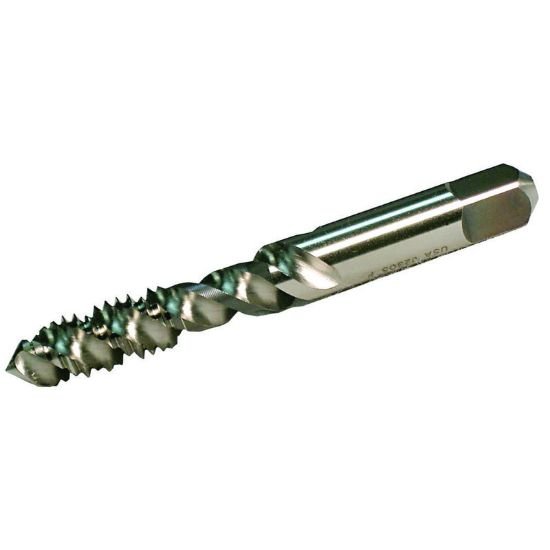

Picture of Widia/Kennametal 19932 M5-0.80mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiN

Widia/Kennametal 19932 M5-0.80mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiN

Part Number: WID19932

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168001
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2746254 M5x0.80MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiN D4 Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TIN
Overall Length 2.3800 60.45MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.80MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M5
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1500
Tap Chamfer 1.0P-2.0P
