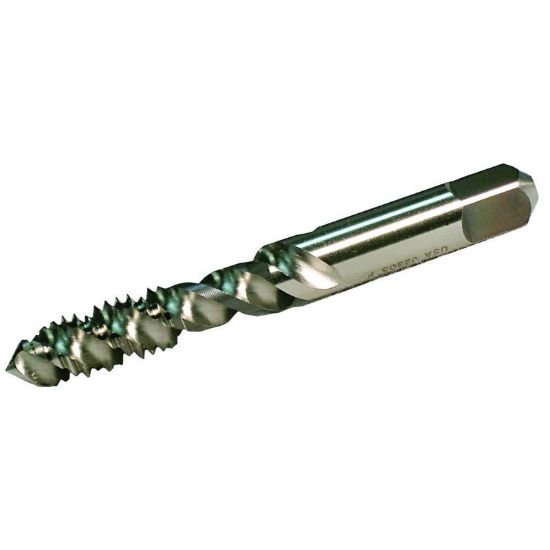

Picture of Widia/Kennametal 19927 M3-0.50mm Cut Spiral Flute Plug 3.0P-5.0P HSSE TiN

Widia/Kennametal 19927 M3-0.50mm Cut Spiral Flute Plug 3.0P-5.0P HSSE TiN

Part Number: WID19927

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168005
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2746264 M3x0.50MM Cut Spiral Flute Plug 3.0P-5.0P HSSE TiN D3 Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TIN
Overall Length 1.9370 49.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M3
Thread Limit D3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Chamfer 3.0P-5.0P
