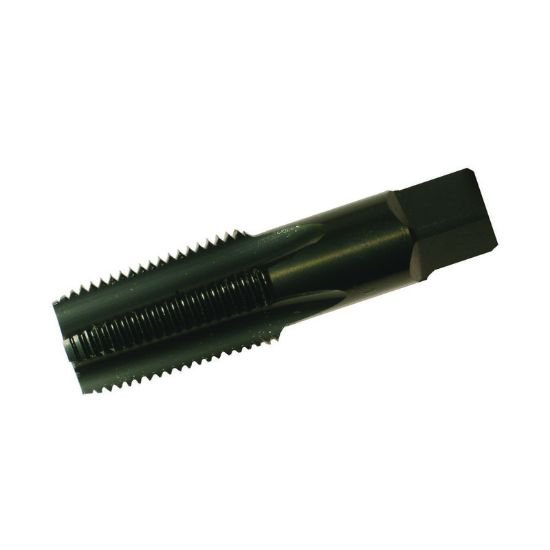

Picture of Widia/Kennametal 19690 1/16-27.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Steam Oxide

Widia/Kennametal 19690 1/16-27.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Steam Oxide

Part Number: WID19690

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168060
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.2417 6.14MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.3125 7.93MM - 5/16
Thread Limit PIPE
Cutter Type Taping
Tap Square 0.2340
Length Type STANDARD
Performance Rating General Performance
Tap Style Pipe Spiral Flute
Overall Length 2.1250 53.98MM
Machine Side (Toolpost) TAP0.234x0.312
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State OHIO
Cutting Edge Material HSS
Tool Material Steel
Coating Steam Oxide
Coolant Thru Non Coolant
Tap Type Pipe
Flute Direction Right
Thread Type NPT/NPTF/ANPT
Made In USA No
Thread Size 1/16"
Thread Pitch 27.00TPI
Tap Chamfer 3.0P-5.0P
