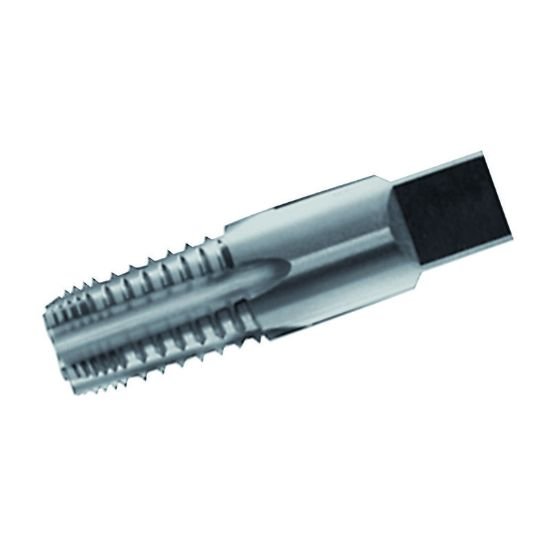

Picture of Widia/Kennametal 19665 1/2-14.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Steam Oxide

Widia/Kennametal 19665 1/2-14.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Steam Oxide

Part Number: WID19665

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168062
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2746421 1/2"x14.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Steam Oxide PIPE NPT/NPTF/ANPT Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating Steam Oxide
Overall Length 3.1260 79.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 1/2"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 17.8500 453.39MM
Tap Square 0.2750
Tap Chamfer 3.0P-5.0P
