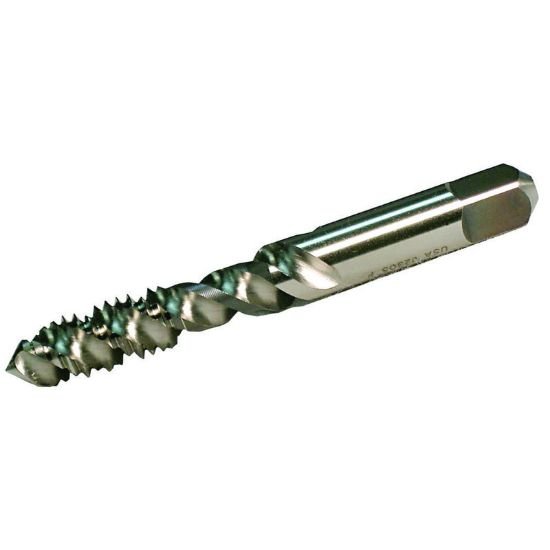

Picture of Widia/Kennametal 19057 M8-1.25mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiCN

Widia/Kennametal 19057 M8-1.25mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WID19057

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168235
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.3180 8.08MM
Thread Limit D5
Cutter Type Taping
Length Type STANDARD
Performance Rating General Performance
Tap Style Cut Spiral Flute
Overall Length 2.7200 69.09MM
Machine Side (Toolpost) TAP0.238x0.318
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 3
Shipping State OHIO
Cutting Edge Material HSSE
Tool Material Steel
Coating TICN
Coolant Thru Non Coolant
Tap Type Bottoming
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M8
Thread Pitch 1.25MM
Tap Chamfer 1.0P-2.0P
