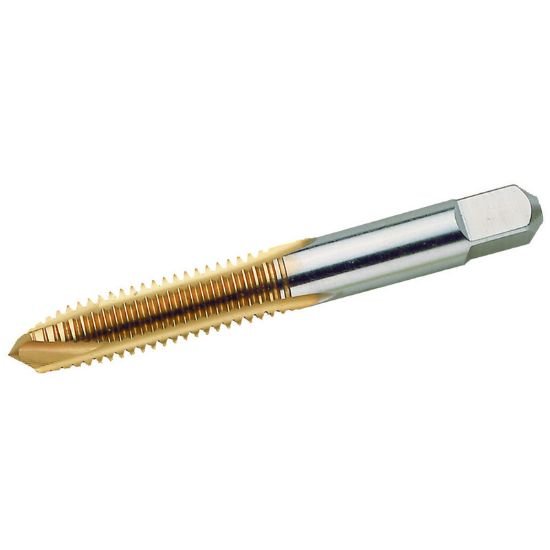

Picture of Widia/Kennametal 19007 No.3-48.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS TiN

Widia/Kennametal 19007 No.3-48.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS TiN

Part Number: WID19007

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168268
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2746999 No.3x48.00TPI Cut Spiral Point Plug 3.0P-5.0P HSS TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating TIN
Overall Length 1.8120 46.02MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 48.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.3
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0772 1.96MM - 0.0827 2.10MM
Tap Square 0.1100
Tap Chamfer 3.0P-5.0P
