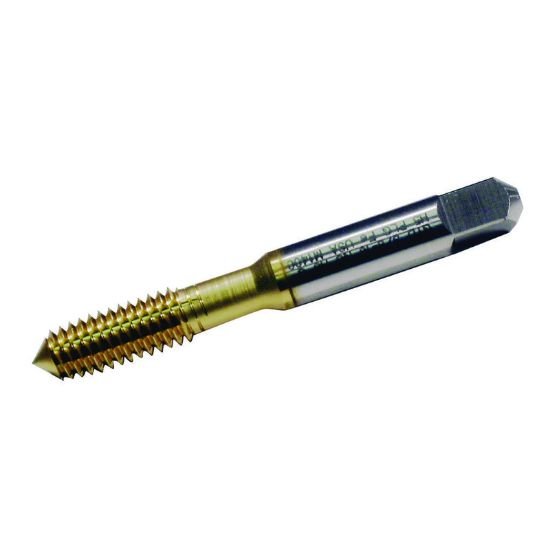

Picture of Widia/Kennametal 18759 M6-1.00mm Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Widia/Kennametal 18759 M6-1.00mm Roll Form Bottoming 1.0P-2.0P HSSE TiCN

Part Number: WID18759

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168303
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2747113 M6x1.00MM Roll Form Bottoming 1.0P-2.0P HSSE TiCN D8 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TICN
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M6
Thread Limit D8
Tap Style Roll Form
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Square 0.1910
Tap Chamfer 1.0P-2.0P
