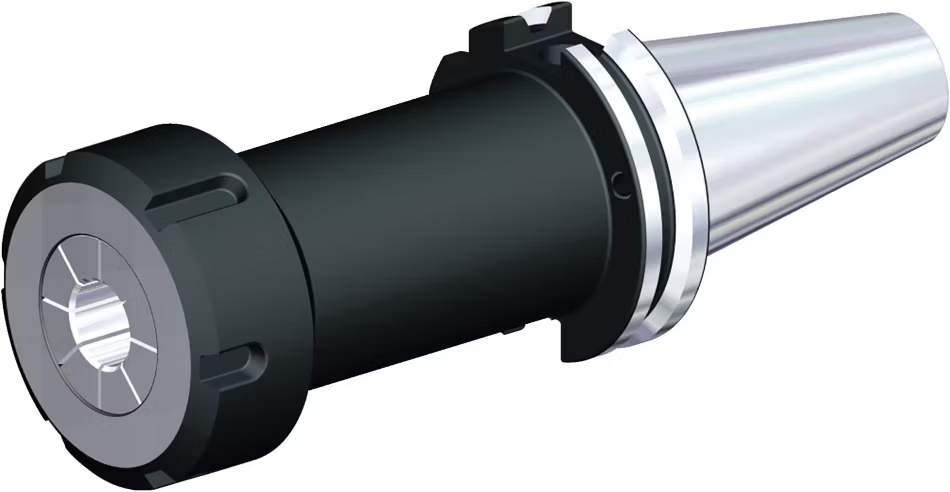

Widia/Kennametal 1770958 SK40 Collet Chuck ER16 4.7244 Gauge Length

Part Number: WID1770958 ISO: DV40BER16120M ANSI:DV40BER16120M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1439505
Vendor: Sussex Tool and Supply
$324.80

Description

Widia/Kennametal Collet Chuck Dv40 16ER 3-26 Ba Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Flange Coolant DIN A/B
Dimensions & Sizing
Overall Length 7.4100 188.21MM
Tool Dia 1.4590 37.05MM
Gauge Length 4.7244
Tool Over Hang 3.9740
Nose Dia/Nut Dia 1.2598
Performance & Capacity
Output 16
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection SK40
