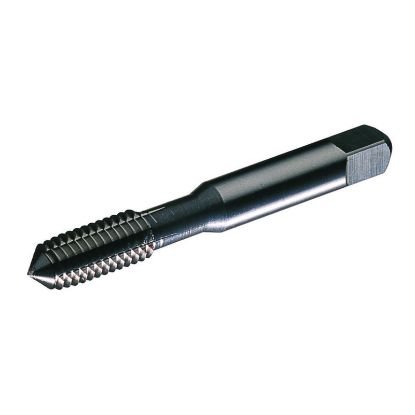

Picture of Widia/Kennametal 17020 No.10-32.00Tpi Roll Form Plug 3.0P-5.0P HSSe Uncoated

Widia/Kennametal 17020 No.10-32.00Tpi Roll Form Plug 3.0P-5.0P HSSe Uncoated

Part Number: WID17020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1002622
Vendor: Sussex Tool and Supply
$19.18

WIDIA KENNAMETTAL tap with right flute and NF UNF UNEF threads. Uncoated steel tool for 3.0P to 5.0P sizes. Tap collet connection TAP0.152x0.194. Machine side connection TAP0.152x0.194.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NF/UNF/UNEF
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.152x0.194

Grades & Coatings

  • Alternate Description: WIDIA 1295732 No.10x32.00TPI Roll Form Plug 3.0P-5.0P HSSE Uncoated H4/GH4 NF/UNF/UNEF

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Forms threads with 3.0P-5.0P pitch, right flute, in NF/UNF/UNEF thread types. Used for tapping in steel or similar materials. Designed for toolpost connection via tap collet.

Composition

Steel tool material, uncoated, HSSe grade. Made in USA: Not specified. Shipping state: OHIO.

Typical Uses

Tapping operations in machinery with tap collet. Fits TAP0.152x0.194 toolpost. Used in roll form plug applications with 32.00 TPI.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.152x0.194
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 2.3800 60.45MM
Shank Or Pilot Diameter 0.1940 4.93MM
Coolant Thru Non Coolant
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Flute Direction Right
Thread Size No.10
Tap Style Roll Form
Tap Type Plug
Thread Limit H4/GH4
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Tap Square 0.1520
Tap Chamfer 3.0P-5.0P
