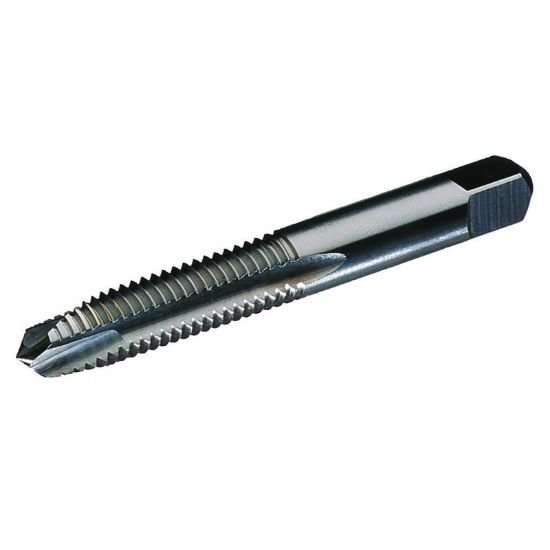

Picture of Widia/Kennametal 16826 1/2-13.00Tpi Cut Spiral Point Plug 3.0P-5.0P HSSe Nitride + Steam Oxide

Widia/Kennametal 16826 1/2-13.00Tpi Cut Spiral Point Plug 3.0P-5.0P HSSe Nitride + Steam Oxide

Part Number: WID16826
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1080233

Description

WIDIA 2747959 1/2"x13.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE Nitride + Steam Oxide H3/GH3 NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Dimensions & Sizing
Overall Length 3.3800 85.85MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
