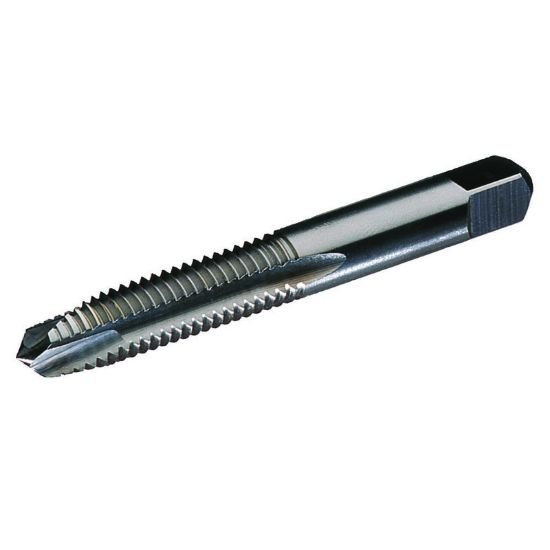

Picture of Widia/Kennametal 16818 3/8-16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE Nitride + Steam Oxide

Widia/Kennametal 16818 3/8-16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE Nitride + Steam Oxide

Part Number: WID16818

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168438
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2747967 3/8"x16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE Nitride + Steam Oxide H3/GH3 NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating Nitride + Steam Oxide
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 3.0P-5.0P
