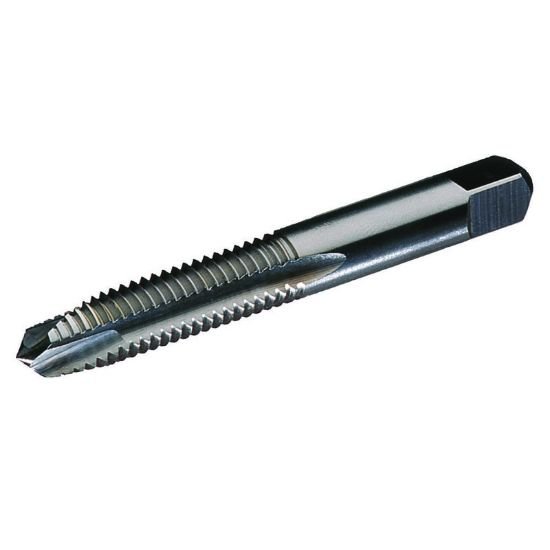

Picture of Widia/Kennametal 16809 No.10-32.00TPI Hand Tap Plug 3.0P-5.5P HSSE Nitride + Steam Oxide

Widia/Kennametal 16809 No.10-32.00TPI Hand Tap Plug 3.0P-5.5P HSSE Nitride + Steam Oxide

Part Number: WID16809
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
No.10 × 32.00TPI Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169343
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIA 2864359 No.10x32.00TPI Hand Tap Plug 3.0P-5.5P HSSE Nitride + Steam Oxide H3/GH3 NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 2.3800 60.45MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.10
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
