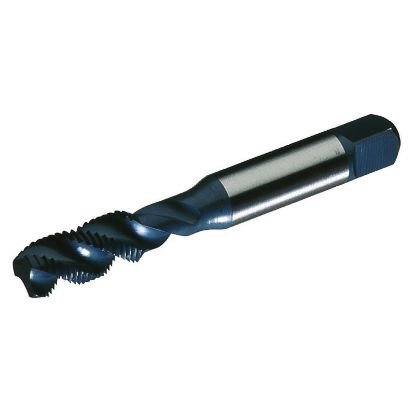

Picture of Widia/Kennametal 16528 1/2-20.00Tpi Cut Spiral Flute Bottoming 1.0P-2.0P HSSe Steam Oxide

Widia/Kennametal 16528 1/2-20.00Tpi Cut Spiral Flute Bottoming 1.0P-2.0P HSSe Steam Oxide

Part Number: WID16528

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1003228
Vendor: Sussex Tool and Supply
$52.87

WIDIA KENNAMETAL tap with steam oxide coating for 1 over 2 inch 20 tpi threads. Right flute spiral bottoming 1 to 2 point HSSe type NF UNF UNEF thread type. Tap collet connection TAP0.276x0.367. Tool material steel.

Key Details

Materials & Finish

  • Coating: Steam Oxide
  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NF/UNF/UNEF
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.276x0.367

Grades & Coatings

  • Alternate Description: WIDIA 2748002 1/2"x20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Steam Oxide H3/GH3 NF/UNF/UNEF

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Cut spiral flute bottoming threads. Works with 1/2-20.00Tpi thread type. Suitable for HSSe Steam Oxide tools.

Composition

Steel tool material. Steam Oxide coating. 1.0P-2.0P pitch range.

Typical Uses

Bottoming in 1/2"x20.00TPI threads. Used in taps with tap collet connection. Fits TAP0.276x0.367 machine side.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.276x0.367
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 3.3740 85.70MM
Shank Or Pilot Diameter 0.3670 9.32MM
Coolant Thru Non Coolant
Coating Steam Oxide
Flutes Or Inserts 3
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction Right
Thread Size 1/2"
Tap Style Cut Spiral Flute
Tap Type Bottoming
Thread Limit H3/GH3
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Chamfer 1.0P-2.0P
