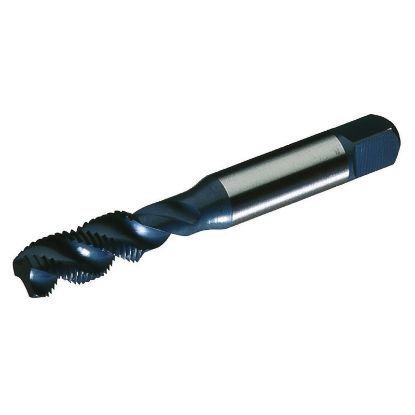

Picture of Widia/Kennametal 16526 1/2-13.00Tpi Cut Spiral Flute Bottoming 1.0P-2.0P HSSe Steam Oxide

Widia/Kennametal 16526 1/2-13.00Tpi Cut Spiral Flute Bottoming 1.0P-2.0P HSSe Steam Oxide

Part Number: WID16526

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1002852
Vendor: Sussex Tool and Supply
$11.02

WIDIA/KENNAMETAL tap has 1/2 inch 13 tpi cut spiral flute bottoming 1.0 to 2.0 pitch steam oxide coating right hand thread. It features NC/UNC thread type with tap collet connection. Tool is made of steel and connects to machine side as TAP0.276x0.367. Tap is for right hand thread with steam oxide coating.

Key Details

Materials & Finish

  • Coating: Steam Oxide
  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NC/UNC
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.276x0.367

Grades & Coatings

  • Alternate Description: WIDIA 2748006 1/2"x13.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Steam Oxide H3/GH3 NC/UNC

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Cut spiral flute bottoming threads. Works with NC/UNC thread type. Used in tapping operations.

Composition

Steel, Steam Oxide coating. Made in USA: No. Flute direction: Right.

Typical Uses

Bottoming in 1/2-13.00Tpi threads. Installed in tap collet TAP0.276x0.367. Used in machine toolpost.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.276x0.367
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 3.3800 85.85MM
Shank Or Pilot Diameter 0.3670 9.32MM
Coolant Thru Non Coolant
Coating Steam Oxide
Flutes Or Inserts 3
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 13.00TPI
Thread Type NC/UNC
Flute Direction Right
Thread Size 1/2"
Tap Style Cut Spiral Flute
Tap Type Bottoming
Thread Limit H3/GH3
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Chamfer 1.0P-2.0P
