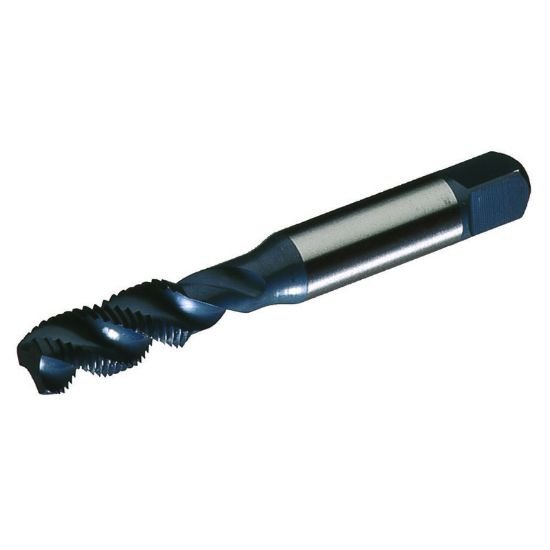

Picture of Widia/Kennametal 16522 7/16-20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Steam Oxide

Widia/Kennametal 16522 7/16-20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Steam Oxide

Part Number: WID16522

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168450
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2748014 7/16"x20.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSSE Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating Steam Oxide
Overall Length 3.1600 80.26MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 7/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Chamfer 1.0P-2.0P
