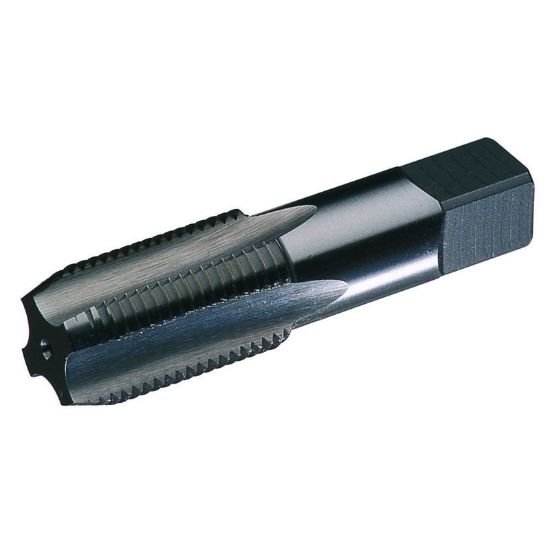

Picture of Widia/Kennametal 16355 1/4-18.00TPI Pipe Spiral Flute Pipe 2.5P-3.5P HSS Uncoated

Widia/Kennametal 16355 1/4-18.00TPI Pipe Spiral Flute Pipe 2.5P-3.5P HSS Uncoated

Part Number: WID16355
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$36.84
SKU: 1168472

Description

WIDIA 2748082 1/4"x18.00TPI Pipe Spiral Flute Pipe 2.5P-3.5P HSS Uncoated PIPE NPSM/NPSF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPSM/NPSF
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 2.5P-3.5P
Dimensions & Sizing
Overall Length 2.4370 61.90MM
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Thread Pitch 18.00TPI
Thread Size 1/4"
Tap Drill Range 0.4528 11.50MM
Tap Square 0.4210
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
