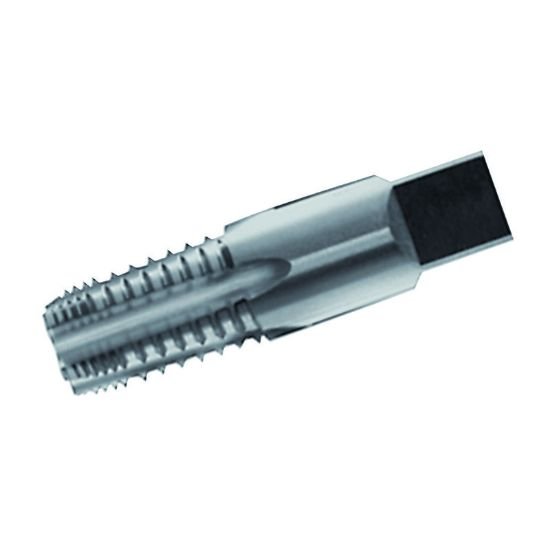

Picture of Widia/Kennametal 16115 1-1/4-11.50TPI Pipe Spiral Flute Pipe 3.0P-5.5P HSS Uncoated

Widia/Kennametal 16115 1-1/4-11.50TPI Pipe Spiral Flute Pipe 3.0P-5.5P HSS Uncoated

Part Number: WID16115
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$326.23
SKU: 1169347

Description

WIDIA 2864744 1-1/4"x11.50TPI Pipe Spiral Flute Pipe 3.0P-5.5P HSS Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.3125 33.34MM - 1-5/16
Flutes/Inserts 5
Thread Pitch 11.50TPI
Thread Size 1-1/4"
Tap Drill Range 1.4839 37.69MM
Tap Square 0.9840
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
