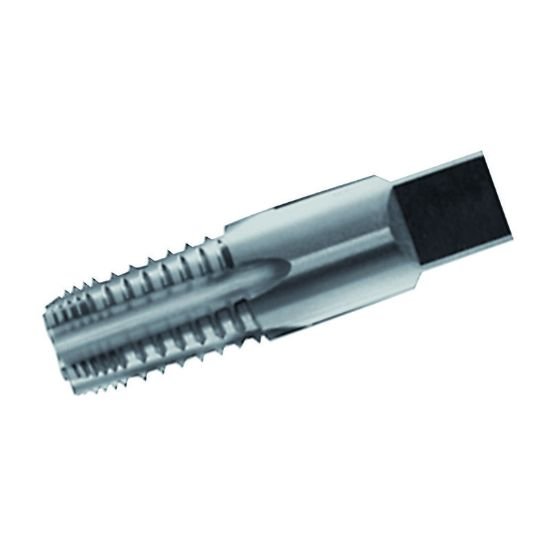

Picture of Widia/Kennametal 16106 1/4-18.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Uncoated

Widia/Kennametal 16106 1/4-18.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Uncoated

Part Number: WID16106

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1194031
Vendor: Sussex Tool and Supply
$0.00
WIDIA 2748257 1/4"x18.00TPI Pipe Spiral Flute Pipe 3.0P-5.0P HSS Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 2.4370 61.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4378 11.12MM
Tap Square 0.4210
Tap Chamfer 3.0P-5.0P
