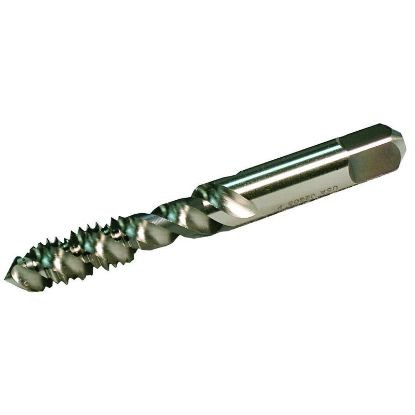

Picture of Widia/Kennametal 16069 M8-1.25mm Cut Spiral Flute Plug 3.0P-5.5P HSSe Uncoated

Widia/Kennametal 16069 M8-1.25mm Cut Spiral Flute Plug 3.0P-5.5P HSSe Uncoated

Part Number: WID16069

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1003034
Vendor: Sussex Tool and Supply
$31.95

WIDIA KENNAMETAL tap with metric thread M8-1.25mm right flute spiral flute 3.0P to 5.5P uncoated steel tool for tap collet TAP0.238x0.318.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Thread Type: Metric
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.238x0.318

Grades & Coatings

  • Alternate Description: WIDIA 2748285 M8x1.25MM Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated D5 Metric

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Cut spiral flute plug with right flute direction. Used for tapping metric threads. Designed for tap collet connection with TAP0.238x0.318 size.

Composition

Steel tool material, uncoated surface, metric thread type.

Typical Uses

Tapping M8x1.25mm threads in machine toolpost. Fits 3.0P-5.5P range. Operates with tap collet in right flute spiral flute plug.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.238x0.318
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 2.7200 69.09MM
Shank Or Pilot Diameter 0.3180 8.08MM
Coolant Thru Non Coolant
Flutes Or Inserts 3
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 1.25MM
Thread Type Metric
Flute Direction Right
Thread Size M8
Tap Style Cut Spiral Flute
Tap Type Plug
Thread Limit D5
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Chamfer 3.0P-5.5P
