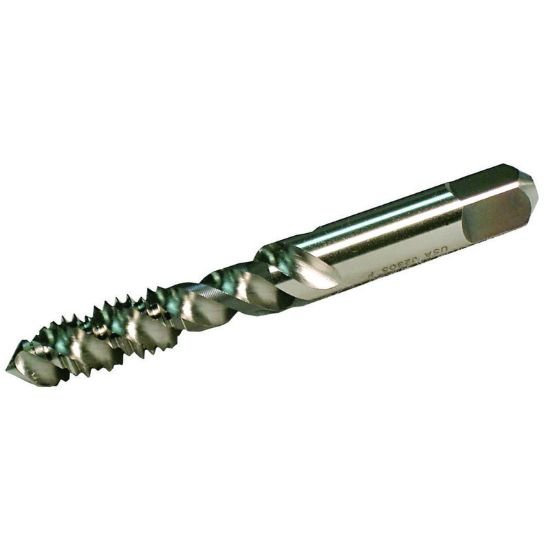

Picture of Widia/Kennametal 16063 M6-1.00mm Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Widia/Kennametal 16063 M6-1.00mm Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Part Number: WID16063

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168526
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2748291 M6x1.00MM Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated D5 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M6
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 3.0P-5.5P
