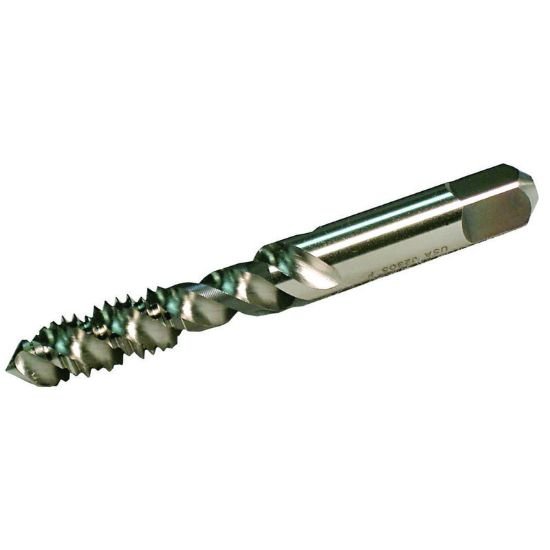

Picture of Widia/Kennametal 16057 M4-0.70mm Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Widia/Kennametal 16057 M4-0.70mm Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated

Part Number: WID16057

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168530
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2748297 M4x0.70MM Cut Spiral Flute Plug 3.0P-5.5P HSSE Uncoated D4 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 2.1300 54.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Chamfer 3.0P-5.5P
