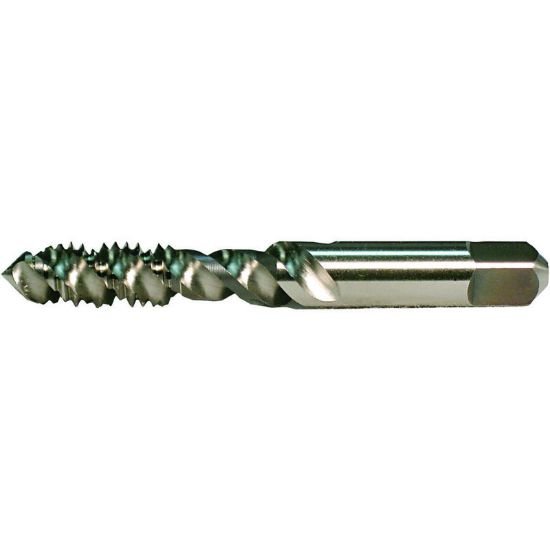

Picture of Widia/Kennametal 16009 No.8-32.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSS Uncoated

Widia/Kennametal 16009 No.8-32.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSS Uncoated

Part Number: WID16009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168557
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 2748366 No.8x32.00TPI Cut Spiral Flute Plug 3.0P-5.5P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Tap Chamfer 3.0P-5.5P
