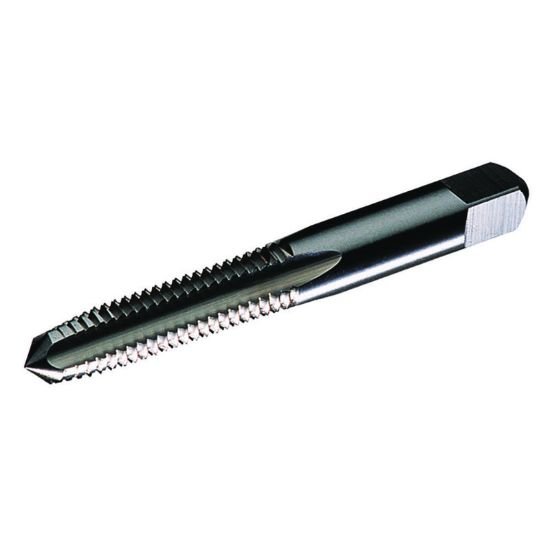

Picture of Widia/Kennametal 15461 5/16-24.00Tpi Hand Tap Bottoming 1.0P-2.0P HSSe Tin

Widia/Kennametal 15461 5/16-24.00Tpi Hand Tap Bottoming 1.0P-2.0P HSSe Tin

Part Number: WID15461

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1001964
Vendor: Sussex Tool and Supply
$15.17

WIDIA KENNAMETAL tap with TiN coating for 5/16 inch 24 TPI threads in NF UNF UNEF ranges. Bottoming hand tap with 1.0P to 2.0P pitch. Made in USA no. Tap collet connection TAP0.238x0.-318

Key Details

Materials & Finish

  • Coating: TiN
  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NF/UNF/UNEF
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.238x0.318

Grades & Coatings

  • Alternate Description: WIDIA 2748568 5/16"x24.00TPI Hand Tap Bottoming 1.0P-2.0P HSSE TiN H3/GH3 NF/UNF/UNEF

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Type Of Tool: Tap

Technical Overview

What It Does

Creates threads using a hand tap. Bottoms threads to 1.0P-2.0P range. Works with NF/UNF/UNEF thread types.

Composition

Steel tool with TiN coating. Made for 5/16"x24.00TPI. Tap collet connection TAP0.238x0.318.

Typical Uses

Used in hand tapping operations. Fits tap collet on machine tool. Applies to HSSe Tin taps with 5/16-24.0 TPI.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.238x0.318
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 2.7200 69.09MM
Shank Or Pilot Diameter 0.3180 8.08MM
Coolant Thru Non Coolant
Coating TiN
Flutes Or Inserts 3
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Thread Size 5/16"
Tap Style Hand Tap
Tap Type Bottoming
Thread Limit H3/GH3
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Tap Chamfer 1.0P-2.0P
