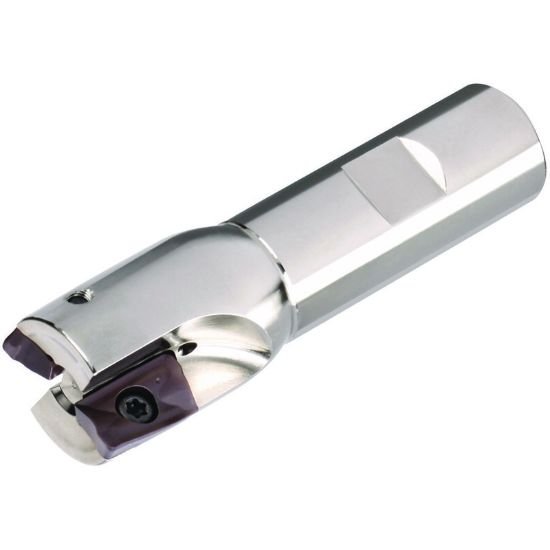

Picture of Widia/Kennametal 15396480200 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

Widia/Kennametal 15396480200 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

Part Number: WID3577772 1.000 x 1.000 x 0.618 x 3.750 ISO: 15396480200 ANSI:15396480200
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1017929
Vendor: Sussex Tool and Supply
$380.09

Description

WIDIA 3577772 Parallelogram 90.0°, End Mill End Mill Cylindrical 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style BD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Length Of Cut 0.6181 15.70MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 35000
Materials & Finish
Tool Material Steel
