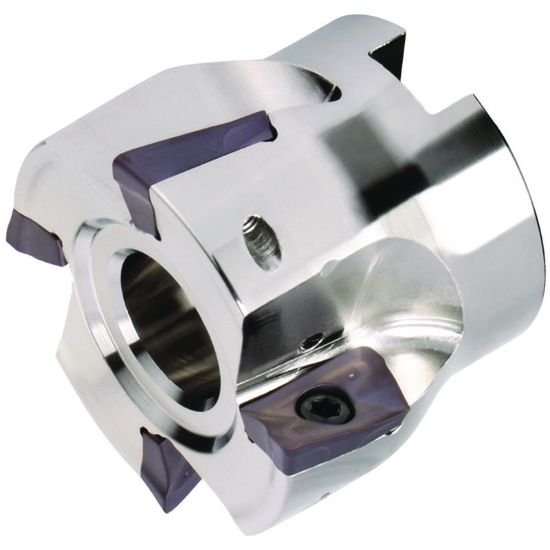

Picture of Widia/Kennametal 15396471600 90.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

Widia/Kennametal 15396471600 90.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

Part Number: WID3786394 ISO: 15396471600 ANSI:15396471600
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1017983
Vendor: Sussex Tool and Supply
$661.76

Description

WIDIA 3786394 Parallelogram 90.0°, End Mill SHELL1.0000 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style BD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9690 50.01MM
Flutes/Inserts 6
Tool Dia 3.0000 76.20MM
Length Of Cut 0.6181 15.70MM
Insert Size Ic 17
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 12250
Materials & Finish
Tool Material Steel
