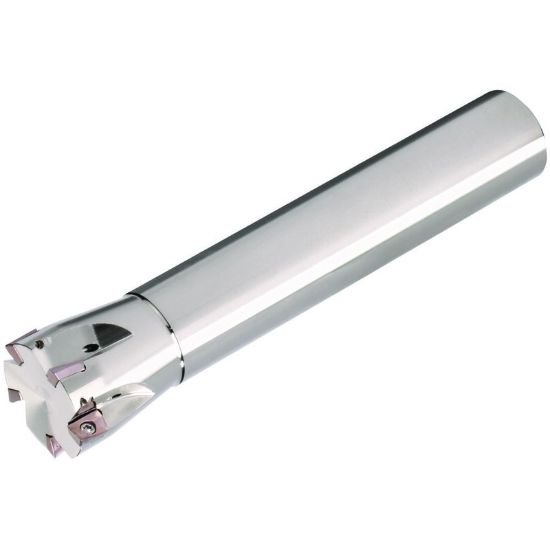

Picture of Widia/Kennametal 15396443200 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

Widia/Kennametal 15396443200 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 0.750

Part Number: WID3786390 1.000 x 0.750 x 0.236 x 4.500 ISO: 15396443200 ANSI:15396443200
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1017980
Vendor: Sussex Tool and Supply
$419.91

Description

WIDIA 3786390 Parallelogram 90.0°, End Mill End Mill Cylindrical 0.7500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Roughing, Semi Finishing
Insert Style BD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 1.0000 25.40MM
Length Of Cut 0.2362 6.00MM
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Max RPM 36900
Materials & Finish
Tool Material Steel
