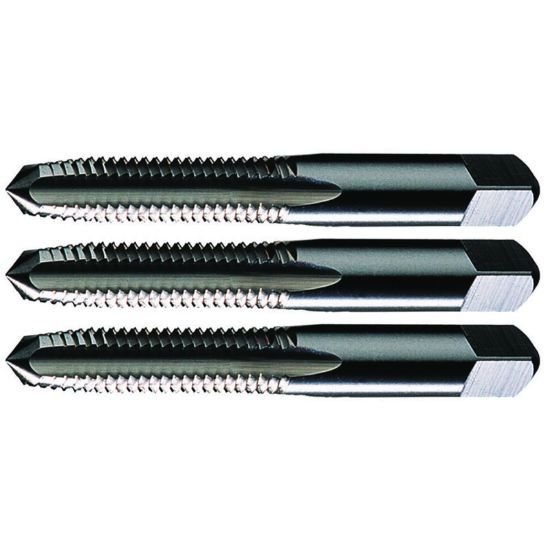

Picture of Widia/Kennametal 15393 No.12-28.00TPI Set HSS Uncoated

Widia/Kennametal 15393 No.12-28.00TPI Set HSS Uncoated

Part Number: WID15393
Looking for alternatives…
Find a drill for this tap No.12 × 28.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1168592
Vendor: Sussex Tool and Supply
$23.60

Description

WIDIA 2748623 No.12x28.00TPI Set HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Set
Dimensions & Sizing
Overall Length 2.3740 60.30MM
Shank/Pilot Dia 0.2200 5.59MM
Flutes/Inserts 4
Thread Pitch 28.00TPI
Thread Size No.12
Tap Drill Range 0.1787 4.54MM - 0.1882 4.78MM
Tap Square 0.1650
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
