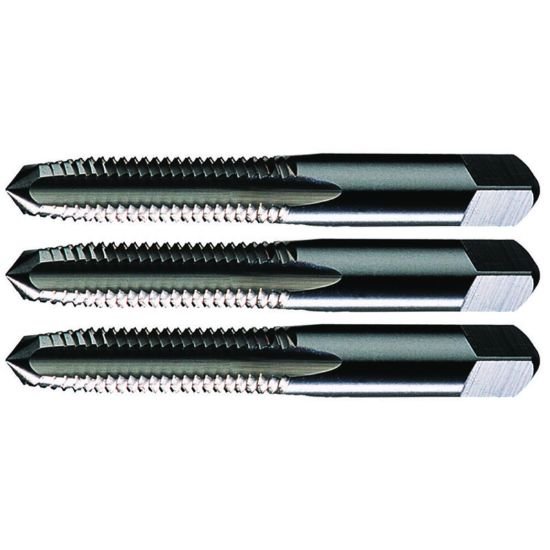

Picture of Widia/Kennametal 15123 No.1-72.00Tpi Set HSS Uncoated

Widia/Kennametal 15123 No.1-72.00Tpi Set HSS Uncoated

Part Number: WID15123

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1003131
Vendor: Sussex Tool and Supply
$23.03

WIDIA/KENNAMETAL HSS uncoated tap set 72 TPI right flute for NF UNF UNEF threads. Tap collet connection TAP0 110x0 140. Made for NF/UNF/UNEF threads. Tool material steel.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NF/UNF/UNEF
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.110x0.140

Grades & Coatings

  • Alternate Description: WIDIA 2748961 No.1x72.00TPI Set HSS Uncoated H1/GH1 NF/UNF/UNEF

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Creates threads with 72.00 TPI. Used for tapping right-hand threads. Suitable for H1/GH1 thread types.

Composition

Steel tool material. Uncoated surface. Tap collet connection.

Typical Uses

Tapping in machine toolpost. Fits TAP0.110x0.140. For NF/UNF/UNEF threads.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSS
Tool Material Steel
Machine Side (Toolpost) TAP0.110x0.140
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 1.6880 42.88MM
Shank Or Pilot Diameter 0.1410 3.58MM
Coolant Thru Non Coolant
Flutes Or Inserts 2
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 72.00TPI
Thread Type NF/UNF/UNEF
Flute Direction Right
Thread Size No.1
Tap Style Set
Thread Limit H1/GH1
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0583 1.48MM - 0.0622 1.58MM
Tap Square 0.1100
