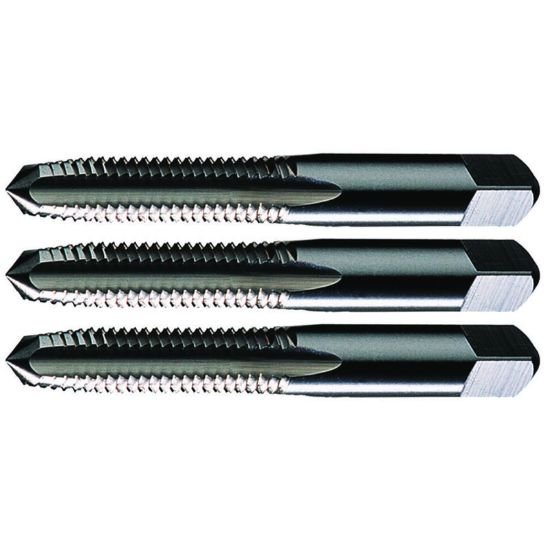

Picture of Widia/Kennametal 14643 1-3/8-12.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Widia/Kennametal 14643 1-3/8-12.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Part Number: WID14643
Looking for alternatives…
Find a drill for this tap 1-3/8" × 12.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1260939
Vendor: Sussex Tool and Supply
$785.21

Description

WIDIA 2749243 1-3/8"x12.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated H4/GH4 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 6.0620 153.97MM
Shank/Pilot Dia 1.1080 28.14MM
Flutes/Inserts 6
Thread Pitch 12.00TPI
Thread Size 1-3/8"
Tap Drill Range 1.2882 32.72MM - 1.3098 33.27MM
Tap Square 0.8310
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
