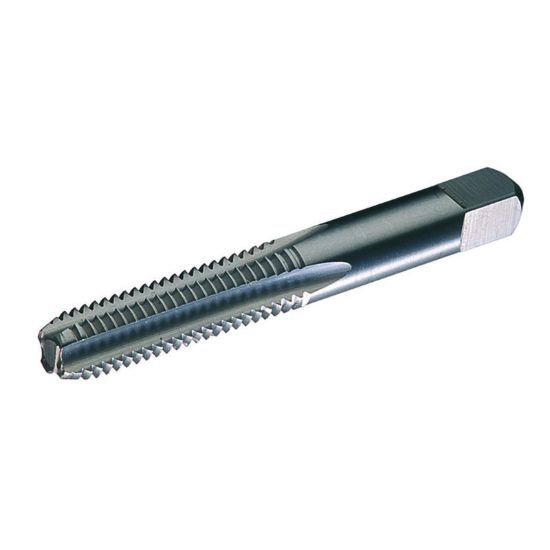

Picture of Widia/Kennametal 14250 7/16-20.00Tpi Hand Tap Taper 7.0P-10.0P HSS Uncoated

Widia/Kennametal 14250 7/16-20.00Tpi Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: WID14250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1023653
Vendor: Sussex Tool and Supply
$0.00
WIDIA 3171055 7/16"x20.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 3.1560 80.16MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction LEFT
Thread Size 7/16"
Thread Limit H3/GH3
Tap Style Hand Tap
Tap Type Taper
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tap Chamfer 7.0P-10.0P
