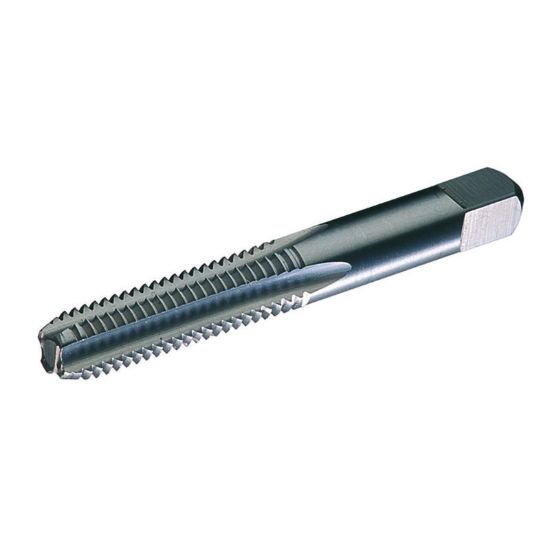

Picture of Widia/Kennametal 14097 5/16-18.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Widia/Kennametal 14097 5/16-18.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Part Number: WID14097

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1168955
Vendor: Sussex Tool and Supply
$0.00
WIDIA 2749724 5/16"x18.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NC/UNC
Flute Direction LEFT
Thread Size 5/16"
Thread Limit H3/GH3
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Square 0.2380
Tap Chamfer 3.0P-5.5P
