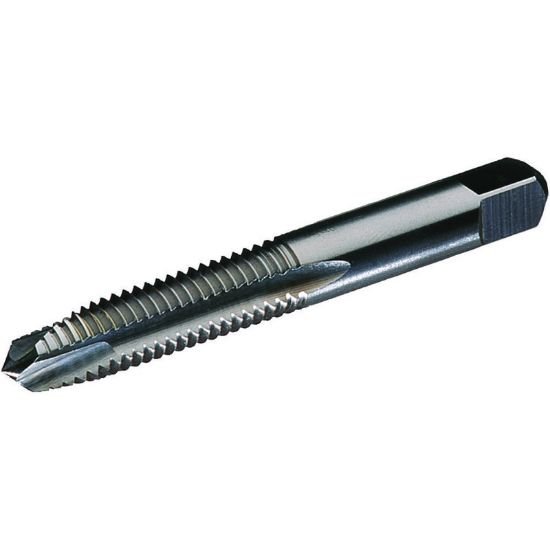

Picture of Widia/Kennametal 13379 M5-0.80mm Hand Tap Plug 3.0P-5.5P HSSE Uncoated

Widia/Kennametal 13379 M5-0.80mm Hand Tap Plug 3.0P-5.5P HSSE Uncoated

Part Number: WID13379
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M5 × 0.80MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1243163
Vendor: Sussex Tool and Supply
$10.80

Description

WIDIA 2750009 M5x0.80MM Hand Tap Plug 3.0P-5.5P HSSE Uncoated D4 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 2.3740 60.30MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1500
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard ANSI/ANSI
