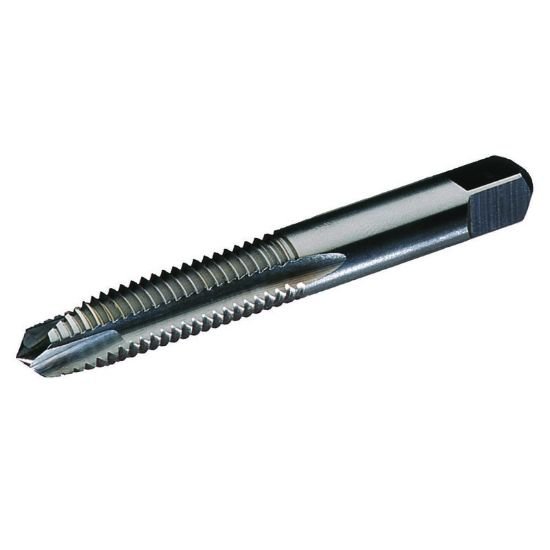

Picture of Widia/Kennametal 13344 3/4-10.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Widia/Kennametal 13344 3/4-10.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated

Part Number: WID13344
Looking for alternatives…
Find a drill for this tap 3/4" × 10.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1169031
Vendor: Sussex Tool and Supply
$60.56

Description

WIDIA 2750023 3/4"x10.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated H5/GH5 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Plug
Tap Chamfer 3.0P-5.5P
Dimensions & Sizing
Overall Length 4.2520 108.00MM
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Thread Pitch 10.00TPI
Thread Size 3/4"
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4420
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
