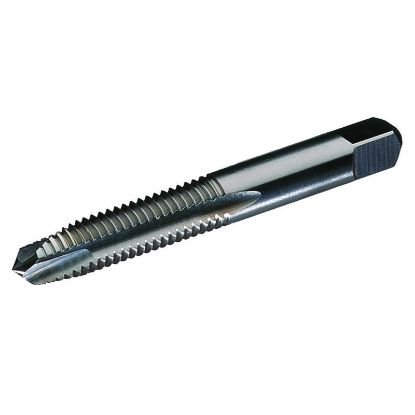

Picture of Widia/Kennametal 13268 1/4-20.00Tpi Hand Tap Plug 3.0P-5.5P HSS Uncoated

Widia/Kennametal 13268 1/4-20.00Tpi Hand Tap Plug 3.0P-5.5P HSS Uncoated

Part Number: WID13268

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1002788
Vendor: Sussex Tool and Supply
$7.37

Hand tap plug with right flute for NC UNC threads 3.0P to 5.5P. HSS uncoated steel tool. Tap collet connection TAP0.191x0.255. Made in USA: No.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NC/UNC
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.191x0.255

Grades & Coatings

  • Alternate Description: WIDIA 2750156 1/4"x20.00TPI Hand Tap Plug 3.0P-5.5P HSS Uncoated H1/GH1 NC/UNC

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: OHIO
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Creates threads in metal using a hand tap plug. Operates on NC/UNC thread type. Flute direction is right.

Composition

Steel tool material. Uncoated surface. HSS steel composition.

Typical Uses

Used in hand tapping operations. Fits tap collet TAP0.191x0.255. Applied in machining with 1/4"x20.00TPI threads.

Products specifications
Attribute name Attribute value
Shipping State OHIO
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSS
Tool Material Steel
Machine Side (Toolpost) TAP0.191x0.255
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 2.5000 63.50MM
Shank Or Pilot Diameter 0.2550 6.48MM
Coolant Thru Non Coolant
Flutes Or Inserts 2
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction Right
Thread Size 1/4"
Tap Style Hand Tap
Tap Type Plug
Thread Limit H1/GH1
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Tap Chamfer 3.0P-5.5P
